European sockets
Two European sockets in a manually raised body.
V7BSSB-EU at a glance
Compact manual-lift power for everyday benchtop access.

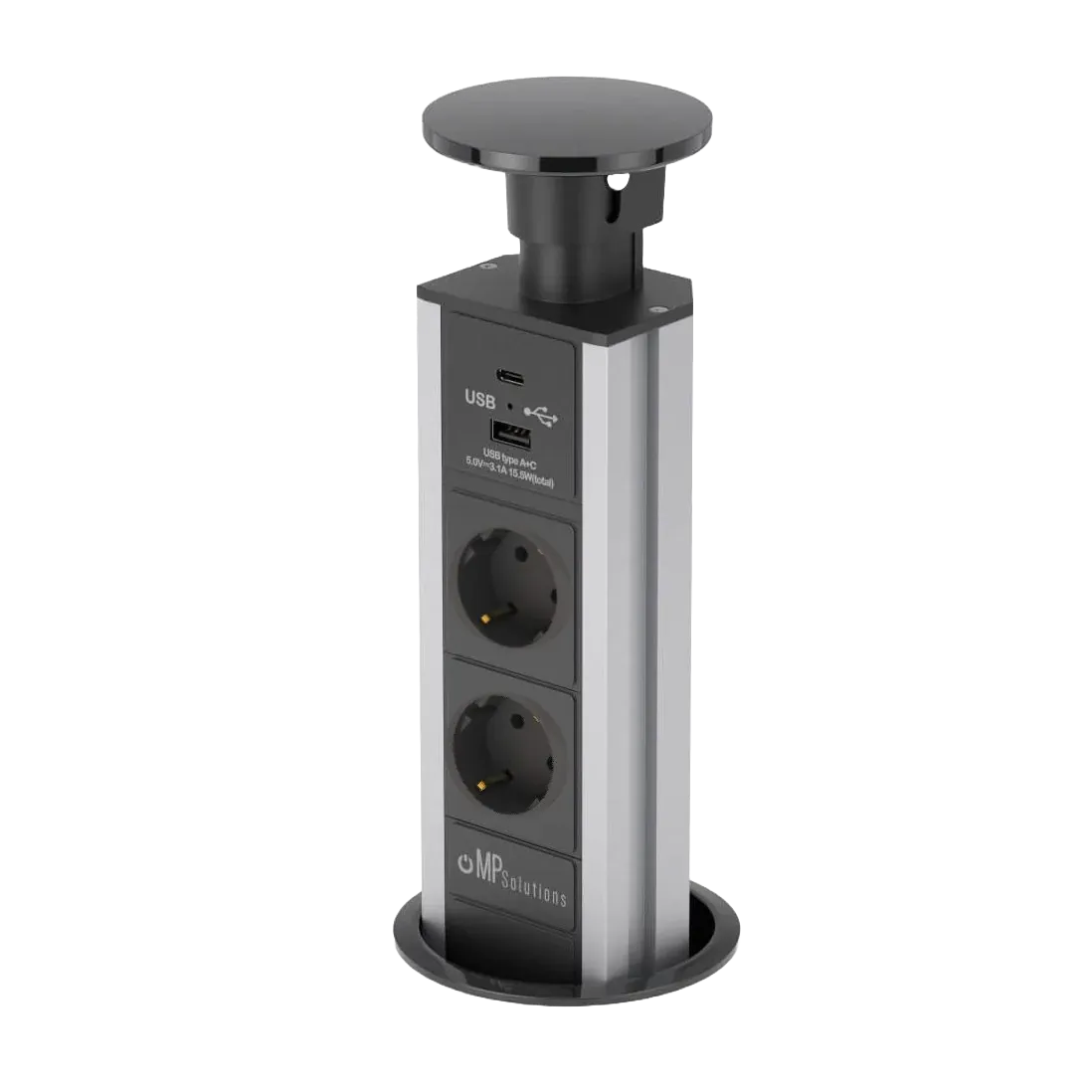

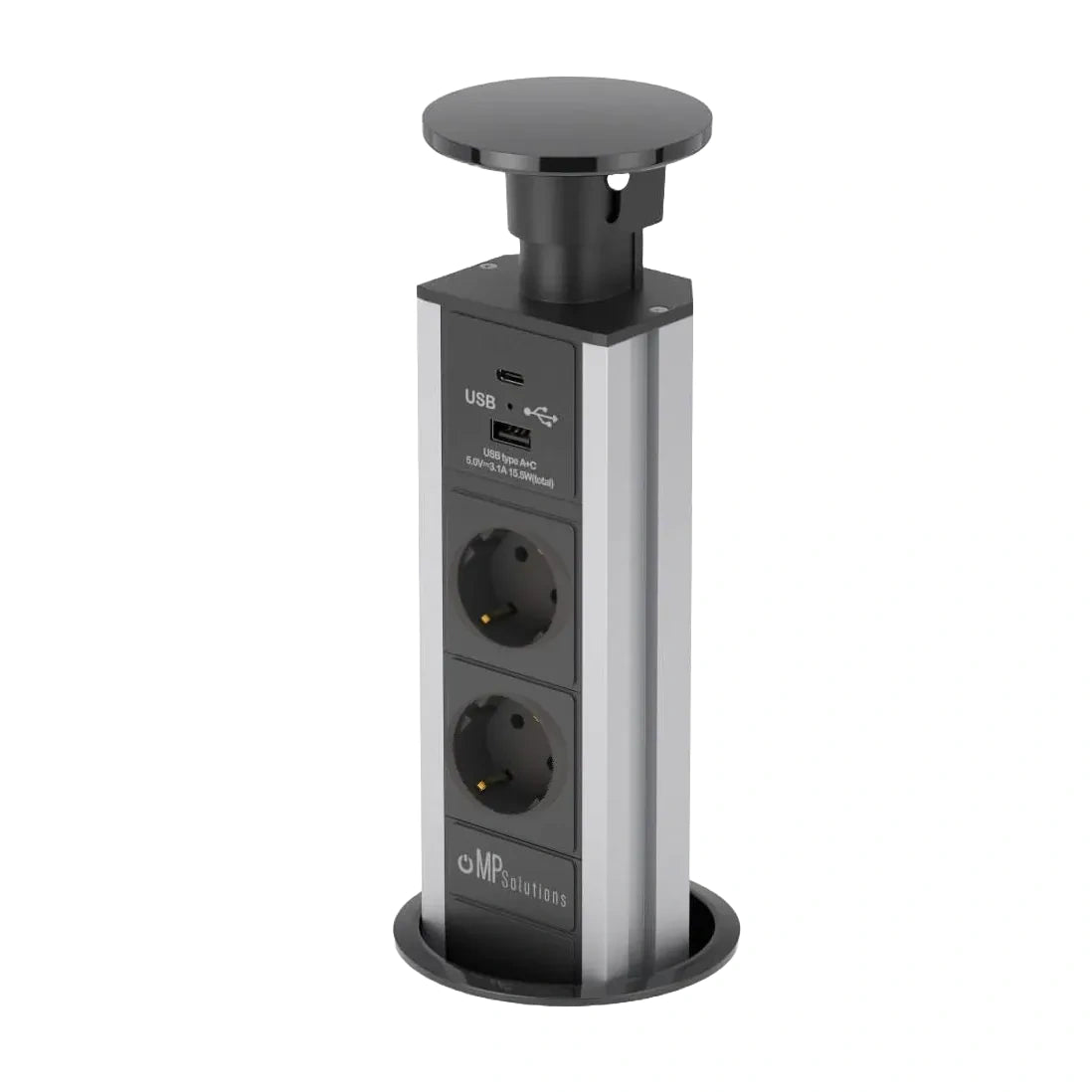

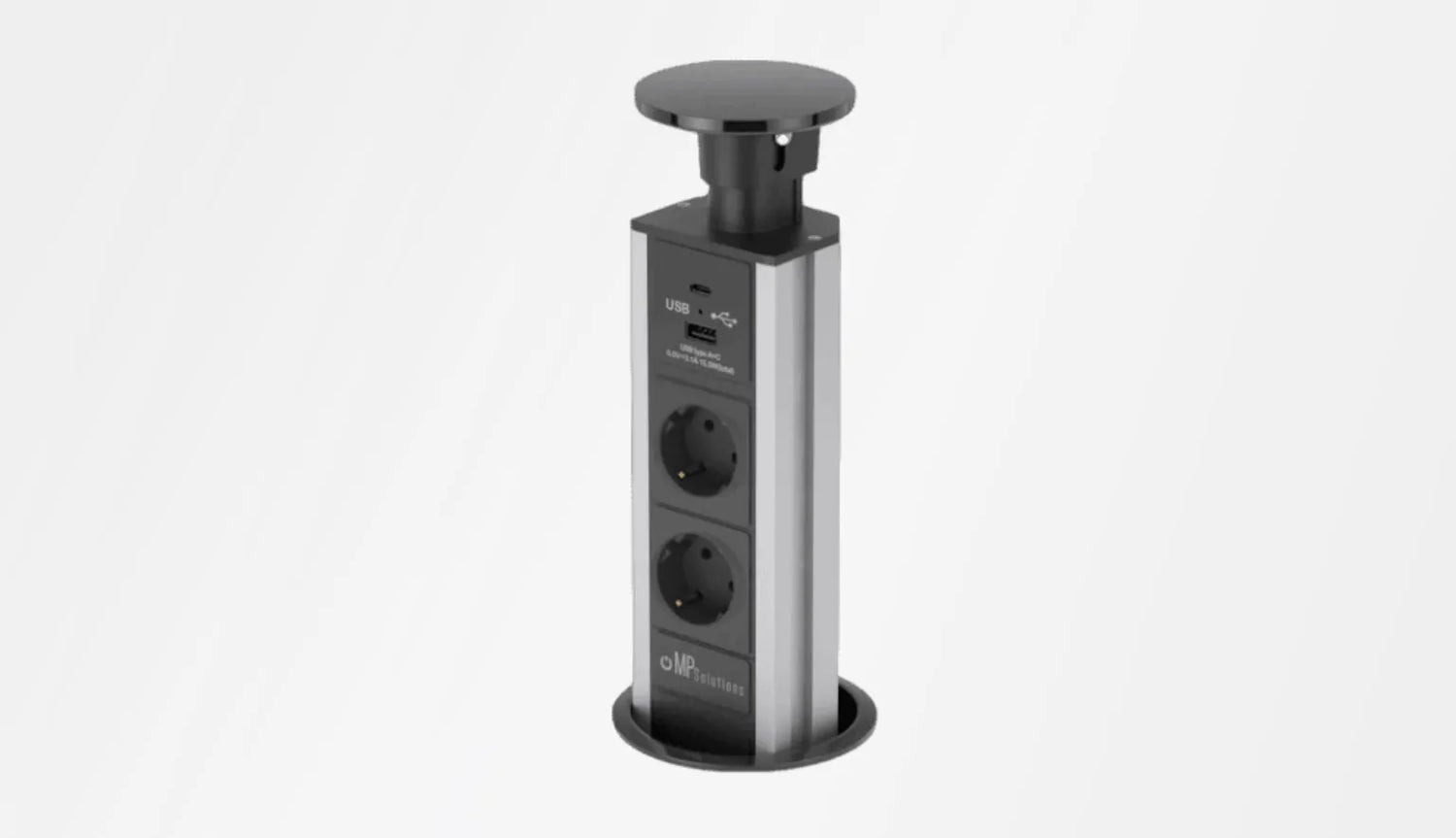

A manual pop-up socket with a brushed stainless-steel top, two European sockets, one USB-A port and one USB-C port.
Features
USB charging
One USB-A port and one USB-C port provide 15.5W combined.
Stainless-steel top

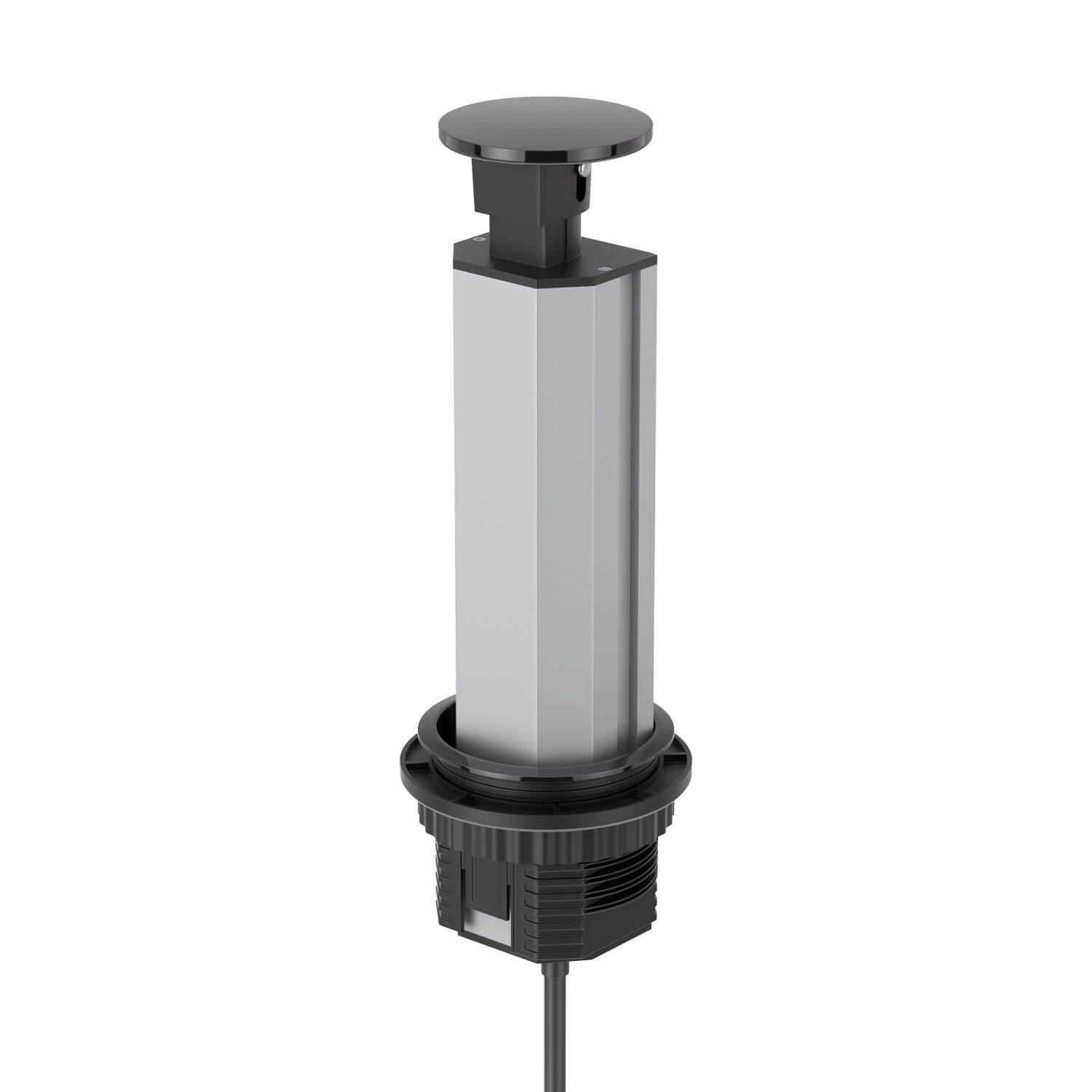

A brushed stainless-steel top sits neatly on the worktop when retracted.
Installation planning
80–82mm opening
Plan an 80–82mm installation opening.
280mm clearance
Allow 280mm below the top surface; body diameter is 100mm.
Check country compatibility
Supplied with a 1.8m lead and fitted European plug. Confirm compatibility for the destination country before ordering or installation.
Important: 230V AC, 50Hz; 10A / 2,300W total maximum; IP20. Confirm plug and socket compatibility for the destination country before ordering or installation.
The difference between ordinary and extraordinary is that little extra
80–82mm installation opening
Plan an 80–82mm opening.
European plug and sockets
Supplied with a 1.8m lead and fitted European plug. Confirm plug and socket compatibility for the destination country before ordering or installation.
Use as specified
Read the supplied instructions and product label before installation and use. Do not exceed the 10A / 2,300W total rating.
Technical sheet
The V7BSSB-EU technical sheet is being aligned with the current electrical specification. Contact support for the latest installation information before cutting.
Dimensions and details
Specifications, support and common questions.
Electrical, installation, delivery and support information is consolidated here so it is easier to scan.
Specifications
Electrical
230V AC, 50Hz; 10A and 2,300W total maximum. IP20.
Connections
2 × European sockets, 1 × USB-A and 1 × USB-C.
USB output
USB-A + USB-C: 5V / 3.1A, 15.5W combined.
Delivery, warranty and support
Shipping information
View current delivery options and estimated timeframes for your location.
Frequently asked questions
Will it work in every European country?
Not necessarily. Plug and socket standards vary. Confirm compatibility for the destination country before ordering or installation.
What opening is required?
Plan an 80–82mm opening.
What electrical rating applies?
The published product rating is 230V AC, 50Hz, 10A and 2,300W maximum. Plug and socket compatibility varies by destination country.
